铜包钢产品系列

型号:CCS
直径:0.10mm~4.00mm
容量:300吨/ m
抗拉强度:290 Mpa – 1500 Mpa
电导率:ICAS为15-40%
伸长率:1%-25%

联系我们

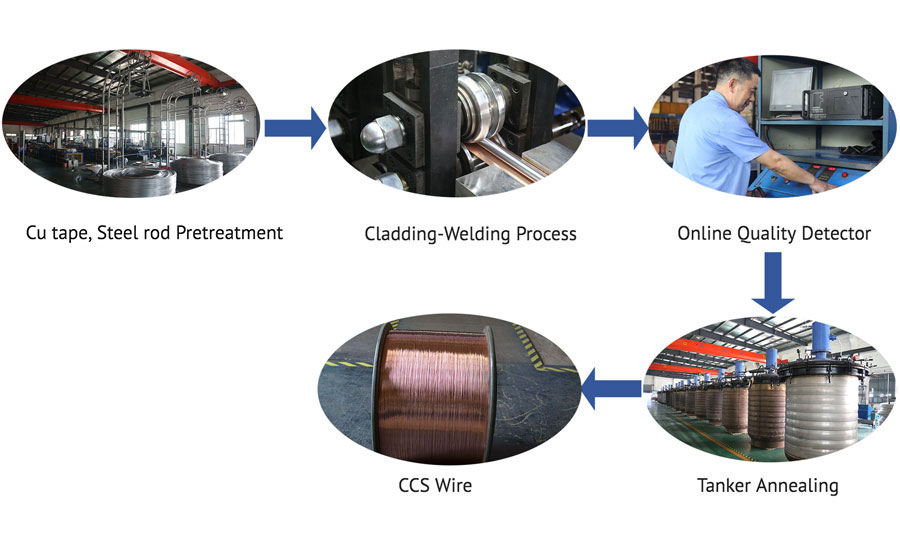

CCS wire is formed through electroplating method(taking steel wire as the core and depositing the copper layer evenly on the surface of the steel core) and cladding method (Cladding planished copper stripe concentrically on the outer surface of the steel core).
CCS wire can be divided into six types by conductivity, 15%CCS,18%CCS,21%CCS, 25%CCS, 30%CCS,40%CCS,and two mechanical status: Annealed (A) and Hard drawn(H).

We can supply products with various conductivity and tensile strength upon the requirement of customers.

Furthermore, CCS wire can be processed to be silver plated or tinned CCS wire

Manufacture Standard:
China standard YD/T722-94 ASTM B 869-96,ASTM B 452-93

Features:

As a composite material, the copper-coated steel wire has the combined advantages of both copper-wire and steel wire, namely the conductivity of copper wire and the strength of steel wire. Moreover, it has 3 to 4 times the strength of pure copper wire and 3 to 5 times the conductivity of steel wire. It is being widely used as a new generation communication lines and power transmission cables.

Advantages:

  • Anti-corrosion. As the copper-coated steel wire has a steel core with a uniform copper coating, it is highly resistant to corrosion in air. If the wire is of large diameter and is used as aerial line, bare wire can be used without PVC covered.
  • Small signal transmission decay. There is skin effect in the transmission of high frequency communication signal. The electric signal is transmission signal. The electric signal is transmitted in the outer copper layer. The transmission decay of copper-coated steel wire is as small as pure copper wire. 50%to70% copper can be saved using copper-coated steel wire instead of pure copper wire.
  • High strength and low density. Since the steel core can enhance the strength of copper-coated steel wire, and the density of steel is lower than that of copper, the size of suspension steel wire can be reduced by using copper-coated steel wire as aerial line.

Physical Property of CCS wire

Specification Copper in volume

(%)

Copper in mass

(%)

Density
(g/cm³)
Max.DC resistivity (Ω.mm²/m 20°C) Min.tensile strength (Mpa)
A H
21%ACS 13.60 15.20 7.99 0.08210 400 825
30%ACS 21.30 23.60 8.02 0.05747 380 760
40%ACS 32.60 35.60 8.15 0.04310 350 700
Copper 100.00 100.00 8.89 0.01724 250 400

Technical Data

                  Nominal Diameter (mm)   Mass per unit length (kg/km) DC resistance per unit length(Ω/km)20°C Min.breaking load(N)
(A) (H)
21%
ACS
30%
ACS
40%
ACS
21%
ACS
30%
ACS
10%
ACS
21%
ACS
30%
ACS
40%
ACS
21%
ACS
30%
ACS
40%
ACS
2.00 25.03 25.18 25.59 22.90 18.30 13.73 1256 1193 1099 2591 2386 2198
1.81 20.50 20.63 20.96 27.90 22.40 16.76 1028 977 900 2122 1955 1800
1.63 16.62 16.73 17.00 34.40 27.60 20.66 834 793 730 1720 1585 1460
1.50 14.08 14.17 14.39 10.60 32.50 24.41 706 671 618 1457 1342 1232
1.20 9.01 9.07 9.21 63.50 50.90 38.14 452 426 396 932 859 791
1.02 6.51 6.55 6.66 87.90 70.40 52.77 326 310 286 674 621 572
0.90 5.07 5.10 5.18 113.00 90.40 67.78 254 242 248 525 483 445
0.81 4.10 4.13 4.20 139.00 112.00 83.68 206 196 180 425 391 361
0.75 3.52 3.54 3.60 163.00 130.00 97.61 176 168 155 364 336 309
0.63 2.48 2.50 2.54 231.00 185.00 138.30 124 118 109 257 237 218
0.50 1.56 1.57 1.60 366.00 293.00 219.60 78 75 69 162 149 137
0.40 1.00 1.01 1.02 572.00 458.00 343.20 50 48 44 104 95 88
0.30 0.56 0.57 0.58 1017.00 814.00 610.10 28 27 25 58 54 49
0.25 0.39 0.39 0.40 1464.00 1173.00 878.50 19 19 17 40 37 34
0.20 0.25 0.25 0.26 2288.00 1830.00 1372.60 12 12 11 26 24 22
0.18 0.20 0.20 0.21 2824.00 2260.00 1694.60 10 10 9 21 19 18
0.17 0.18 0.18 0.18 3166.00 2533.00 1899.80 9 9 8 19 17 15
0.16 0.16 0.16 0.16 3574.00 2860.00 2144.70 8 8 7 17 15 14
0.10 0.06 0.06 0.06 9150.00 7321.00 5490.50 3 3 3 6 6 5

Note: 1.size not listed can be available 2.Customized CCS wire is available

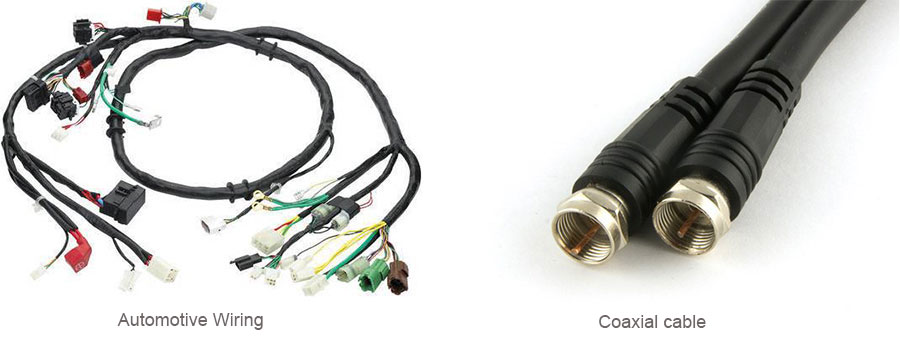

UTP电缆(非屏蔽双绞线)
有线电视
连接通信线
室内电话线
输出引线和电子设备的连接线

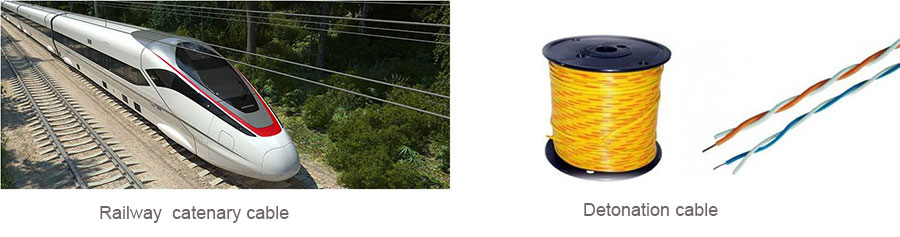

电气化铁路用输电电缆
铁路连接线
军用野外电缆
特殊电子设备

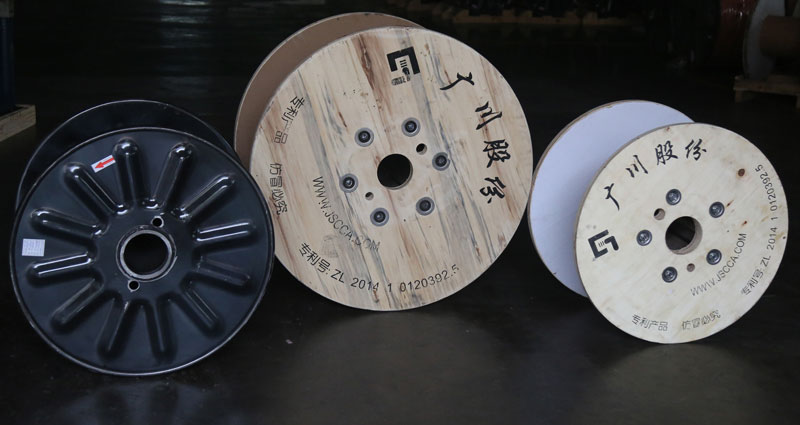

1:梭芯选项

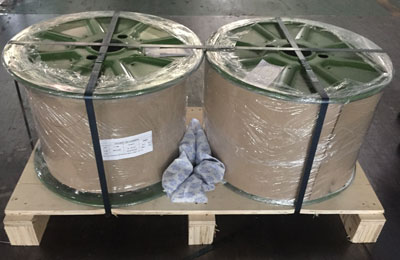

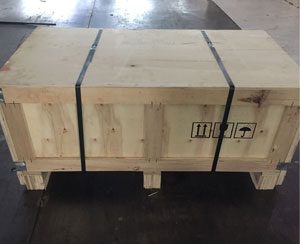

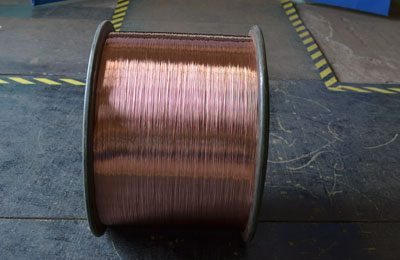

2:包装

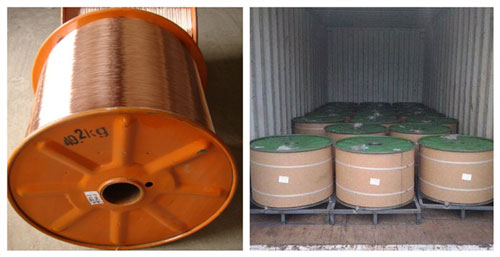

3:运输
